1C350(36) TECK90 1KV

Nexans ref. 12000506 - Country ref. 550384

  • Packaging: Cut to length (m)
  • Number of Conductors: 1
  • Number of strands: 36
  • Conductor diameter: 36.80 inches
  • Conductor diameter (mm): 17.30
  • Copper Content: 2062 kg/km
  • Copper Content: 1384 lb/kft
  • Conductor Size (AWG): 350 MCM
  • Bare Ground (AWG): 3
  • Cable Diameter: 1.44 inches
  • Cable Diameter: 36.7 mm
  • Approximate Net Weight: 1907 lb/kft
  • Approximate Net Weight: 2842 kg/km



1C500(36) TECK90 1KV

Nexans ref. 12000507 - Country ref. 550392

  • Packaging: Cut to length (m)
  • Number of Conductors: 1
  • Number of strands: 36
  • Conductor diameter: 0.81 inches
  • Conductor diameter (mm): 20.65
  • Copper Content: 2864 kg/km
  • Copper Content: 1922 lb/kft
  • Conductor Size (AWG): 500 MCM
  • Bare Ground (AWG):
  • Cable Diameter: 1.59 inches
  • Cable Diameter: 40.3 mm
  • Approximate Net Weight: 2511 lb/kft
  • Approximate Net Weight: 3742 kg/km



1C750(58) TECK90 1KV

Nexans ref. 12000794 - Country ref. 606802

  • Packaging: Cut to length (m)
  • Number of Conductors: 1
  • Number of strands: 58
  • Conductor diameter: 1.00 inches
  • Conductor diameter (mm): 25.35
  • Copper Content: 4189 kg/km
  • Copper Content: 2811 lb/kft
  • Conductor Size (AWG): 750 MCM
  • Bare Ground (AWG):
  • Cable Diameter: 1.81 inches
  • Cable Diameter: 46 mm
  • Approximate Net Weight: 3644 lb/kft
  • Approximate Net Weight: 5429 kg/km



2C12(7) TECK90 1KV

Nexans ref. 12000213 - Country ref. 133280

  • Packaging: Cut to length (m)
  • Number of Conductors: 2
  • Number of strands: 7
  • Conductor diameter: 0.09 inches
  • Conductor diameter (mm): 2.32
  • Copper Content: 80 kg/km
  • Copper Content: 54 lb/kft
  • Conductor Size (AWG): 12 AWG
  • Bare Ground (AWG): 14
  • Cable Diameter: 0.8 inches
  • Cable Diameter: 20.2 mm
  • Approximate Net Weight: 271 lb/kft
  • Approximate Net Weight: 405 kg/km



2C6(7) TECK90 1KV

Nexans ref. 12000082 - Country ref. 422493

  • Packaging: Cut to length (m)
  • Number of Conductors: 2
  • Number of strands: 7
  • Conductor diameter: 0.18 inches
  • Conductor diameter (mm): 4.67
  • Copper Content: 323 kg/km
  • Copper Content: 217 lb/kft
  • Conductor Size (AWG): 6 AWG
  • Bare Ground (AWG): 8
  • Cable Diameter: 1.06 inches
  • Cable Diameter: 26.8 mm
  • Approximate Net Weight: 544 lb/kft
  • Approximate Net Weight: 811 kg/km



Description

Description

Standards

  • Product
    CSA C22.2 N° 131; CSA C22.2 N° 239; CSA C22.2 N° 174

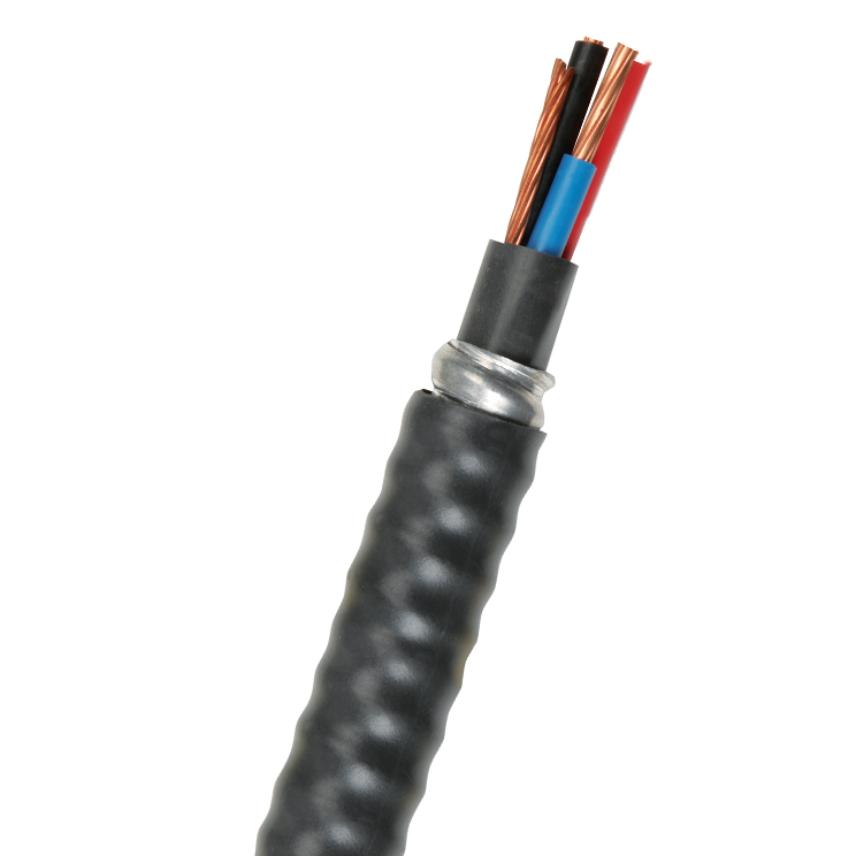

Nexans TECK90 Cables are intended for use in various primary and secondary industries, including chemical processing plants, refineries and general factory environments.

Even in the most demanding industrial and resource industry applications, Nexans TECK90 cables have proven to have a superior service and maintenance record.


TECK90 Cables utilize low acid gas, low flame spread PVC jacket compounds to ensure maximum safety to personnel and equipment in the event of fire.

Applications

TECK90 Cables, originally developed for use in Canadian mines, are flexible, resistant to mechanical abuse, corrosion resistant, compact and reliable. They are suitable for a wide range of applications, including ALL hazardous locations - Class I, Division 1 and 2; Class II, Division 1 and 2; and Class III.



Meets the FT4 flame spread test.

Limited Smoke Zero Halogen is recognized by CSA C22.2 No 2556 with markings ST1-FT4 HAL FREE. This option is available upon request.



Industries such as pulp and paper, chemical, petroleum and other primary and secondary manufacturing industries have used TECK90 Cables, particularly in areas where cables are subject to the risk of mechanical damage and chemical attack.

Commercial applications for TECK90 Cables include apartment buildings and commercial complexes.

TECK90 Cables can be relocated easily because they are rugged and flexible. They can be used in both dry and wet locations in open wiring, in ventilated, non-ventilated and ladder-type cable troughs, in ventilated flexible cableways, and for direct burial.

TECK90 Cables are also suitable for service entrance installations - above and below ground.

Highlights



Nexans TECK90 Cables are:

  • Available from stock
  • Versatile & Flexible
  • Resistant to Mechanical Abuse and Corrosion
  • Compact and Reliable
  • 90°C to -40°C
  • Low Acid Gas (AG14)
  • Inner and outer jackets are sunlight resistant
  • LEAD FREE & RoHS compliant
  • "HL" and "FT4" Rated per CSA
  • ST1 rating available upon request



Marking and Identification

The inner jackets of Nexans TECK90 cables are printed: SUN RES.

The outer jackets of Nexans TECK90 cables are printed: (mon/year) NEXANS TECK90 XLPE (-40°C) CSA LL19376 F HL FT4 AG14 SUN RES along with conductor size, number of conductors and sequential metre marking.



TECK90 1C
Conductor Identification: Black

TECK90 2C
Conductor Identification: Black, White
- 14 AWG to 2 AWG: Coloured Insulation
- 1 AWG to 500 kcmil: Coloured Stripes

TECK90 3C
Conductor Identification:
Red, Black, Blue
- 14 AWG to 2 AWG: Coloured Insulation
- 1 AWG to 500 kcmil: Coloured Stripes

TECK90 4C
Conductor Identification:
Red, Black, Blue, White
- 14 AWG to 2 AWG: Coloured Insulation
- 1 AWG to 500 kcmil: Coloured Stripes

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Insulation
XLPE
Insulation colour
Black

Electrical characteristics

Electrical characteristics

Maximum operating voltage
1 kV

Usage characteristics

Usage characteristics

Maximum operating temperature
90 °C
Minimum installation temperature
-40 °C

Resources

Resources

Selling & delivery Information

Caution Notice

In case of fire, well maintained early warning smoke detectors will give an alarm long before non-metallic coverings become combustible.

However, in spite of the widespread and long-standing use of PVC in residential and commercial buildings, all purchasers of PVC insulated/ jacketed products should be aware of the following:

  • Non-metallic coverings of electrical cables can burn and may transmit fire when ignited.
  • Burning non-metallic coverings may emit acid gases which are toxic and may generate dense smoke.
  • Emission of acid gases may corrode metal in the vicinity; e.g. sensitive instruments and reinforcing rods in cement.
