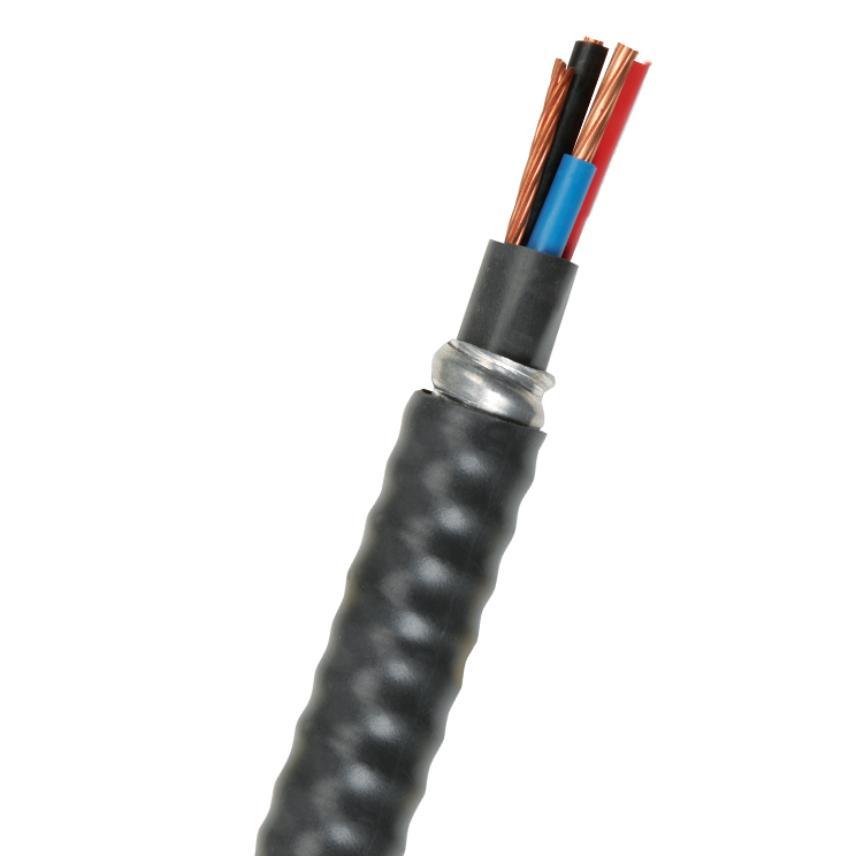

TECK90 600 Volts
TECK90 600 Volts
Nexans TECK90 Cables are intended for use in various primary and secondary industries, including chemical processing plants, refineries and general factory environments.
Read more10C12(7) TECK90 600V
Nexans ref. 12000144 - Country ref. 422337
- Packaging: Cut to length (m)
- Approximate net weight: 790 kg/km
- Cable Diameter: 27.4 mm
- Conductor Size (AWG): 12 AWG
- Conductor diameter (mm): 2.32
- Copper content: 325 kg/km
- Copper content: 218 lb/kft
- Finished Cable Diameter: 0.091 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 531 lb/kft
- Nominal diameter: 0.091 inches
- Number of cores: 10
10C14(7) TECK90 600V
Nexans ref. 12000113 - Country ref. 388207
- Packaging: Cut to length (m)
- Approximate net weight: 667 kg/km
- Cable Diameter: 25 mm
- Conductor Size (AWG): 14 AWG
- Conductor diameter (mm): 1.84
- Copper content: 212 kg/km
- Copper content: 142 lb/kft
- Finished Cable Diameter: 0.072 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 448 lb/kft
- Nominal diameter: 0.072 inches
- Number of cores: 10
12C12(7) TECK90 600V
Nexans ref. 12000130 - Country ref. 416388
- Packaging: Cut to length (m)
- Approximate net weight: 969 kg/km
- Cable Diameter: 28.6 mm
- Conductor Size (AWG): 12 AWG
- Conductor diameter (mm): 2.32
- Copper content: 387 kg/km
- Copper content: 260 lb/kft
- Finished Cable Diameter: 0.091 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 651 lb/kft
- Nominal diameter: 0.091 inches
- Number of cores: 12
12C14(7) TECK90 600V
Nexans ref. 12000139 - Country ref. 422279
- Packaging: Cut to length (m)
- Approximate net weight: 728 kg/km
- Cable Diameter: 25.7 mm
- Conductor Size (AWG): 14 AWG
- Conductor diameter (mm): 1.84
- Copper content: 250 kg/km
- Copper content: 168 lb/kft
- Finished Cable Diameter: 0.072 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 489 lb/kft
- Nominal diameter: 0.072 inches
- Number of cores: 12
15C12(7) TECK90 600V
Nexans ref. 12000000 - Country ref. 444653
- Packaging: Cut to length (m)
- Approximate net weight: 1123 kg/km
- Cable Diameter: 30.2 mm
- Conductor Size (AWG): 12 AWG
- Conductor diameter (mm): 2.32
- Copper content: 478 kg/km
- Copper content: 321 lb/kft
- Finished Cable Diameter: 0.091 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 755 lb/kft
- Nominal diameter: 0.091 inches
- Number of cores: 15
15C14(7) TECK90 600V
Nexans ref. 12000103 - Country ref. 443184
- Packaging: Cut to length (m)
- Approximate net weight: 868 kg/km
- Cable Diameter: 27.7 mm
- Conductor Size (AWG): 14 AWG
- Conductor diameter (mm): 1.84
- Copper content: 308 kg/km
- Copper content: 207 lb/kft
- Finished Cable Diameter: 0.072 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 583 lb/kft
- Nominal diameter: 0.072 inches
- Number of cores: 15
20C10(7) TECK90 600V
Nexans ref. 12000109 - Country ref. 444620
- Packaging: Cut to length (m)
- Approximate net weight: 1966 kg/km
- Cable Diameter: 36.7 mm
- Conductor Size (AWG): 10 AWG
- Conductor diameter (mm): 2.95
- Copper content: 1005 kg/km
- Copper content: 674 lb/kft
- Finished Cable Diameter: 0.116 inches
- Ground Conductor cross-section (AWG): 12
- Nominal cable weight: 1291 lb/kft
- Nominal diameter: 0.116 inches
- Number of cores: 20
20C12(7) TECK90 600V
Nexans ref. 12000087 - Country ref. 432732
- Packaging: Cut to length (m)
- Approximate net weight: 1448 kg/km
- Cable Diameter: 33.6 mm
- Conductor Size (AWG): 12 AWG
- Conductor diameter (mm): 2.32
- Copper content: 632 kg/km
- Copper content: 424 lb/kft
- Finished Cable Diameter: 0.091 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 973 lb/kft
- Nominal diameter: 0.091 inches
- Number of cores: 20
20C14(7) TECK90 600V
Nexans ref. 12000129 - Country ref. 398883
- Packaging: Cut to length (m)
- Approximate net weight: 1140 kg/km
- Cable Diameter: 30.2 mm
- Conductor Size (AWG): 14 AWG
- Conductor diameter (mm): 1.84
- Copper content: 404 kg/km
- Copper content: 271 lb/kft
- Finished Cable Diameter: 0.072 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 766 lb/kft
- Nominal diameter: 0.072 inches
- Number of cores: 20
25C14(7) TECK90 600V
Nexans ref. 12000128 - Country ref. 398875
- Packaging: Cut to length (m)
- Approximate net weight: 1268 kg/km
- Cable Diameter: 33.7 mm
- Conductor Size (AWG): 14 AWG
- Conductor diameter (mm): 1.84
- Copper content: 501 kg/km
- Copper content: 336 lb/kft
- Finished Cable Diameter: 0.072 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 852 lb/kft
- Nominal diameter: 0.072 inches
- Number of cores: 25
2C10(7) TECK90 600V x300m
Nexans ref. 12000309 - Country ref. 383588
- Packaging: Reel (300m)
- Approximate net weight: 405 kg/km
- Cable Diameter: 19.5 mm
- Conductor Size (AWG): 10 AWG
- Conductor diameter (mm): 2.95
- Copper content: 128 kg/km
- Copper content: 86 lb/kft
- Finished Cable Diameter: 0.116 inches
- Ground Conductor cross-section (AWG): 12
- Nominal cable weight: 272 lb/kft
- Nominal diameter: 0.116 inches
- Number of cores: 2
2C12(7) TECK90 600V
Nexans ref. 12000140 - Country ref. 422287
- Packaging: Cut to length (m)
- Approximate net weight: 354 kg/km
- Cable Diameter: 18.4 mm
- Conductor Size (AWG): 12 AWG
- Conductor diameter (mm): 2.32
- Copper content: 80 kg/km
- Copper content: 54 lb/kft
- Finished Cable Diameter: 0.091 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 238 lb/kft
- Nominal diameter: 0.091 inches
- Number of cores: 2
2C12(7) TECK90 600V x300m
Nexans ref. 12010007 - Country ref. 422287
- Packaging: Reel (300m)
- Approximate net weight: 354 kg/km
- Cable Diameter: 18.4 mm
- Conductor Size (AWG): 12 AWG
- Conductor diameter (mm): 2.32
- Copper content: 80 kg/km
- Copper content: 54 lb/kft
- Finished Cable Diameter: 0.091 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 238 lb/kft
- Nominal diameter: 0.091 inches
- Number of cores: 2
2C14(7) TECK90 600V x300m
Nexans ref. 12010006 - Country ref. 422204
- Packaging: Reel (300m)
- Approximate net weight: 284 kg/km
- Cable Diameter: 17.5 mm
- Conductor Size (AWG): 14 AWG
- Conductor diameter (mm): 1.84
- Copper content: 57 kg/km
- Copper content: 38 lb/kft
- Finished Cable Diameter: 0.072 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 191 lb/kft
- Nominal diameter: 0.072 inches
- Number of cores: 2
30C14(7) TECK90 600V
Nexans ref. 12000088 - Country ref. 432989
- Packaging: Cut to length (m)
- Approximate net weight: 1481 kg/km
- Cable Diameter: 35.5 mm
- Conductor Size (AWG): 14 AWG
- Conductor diameter (mm): 1.84
- Copper content: 597 kg/km
- Copper content: 401 lb/kft
- Finished Cable Diameter: 0.072 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 995 lb/kft
- Nominal diameter: 0.072 inches
- Number of cores: 30
3C10(7) TECK90 600V x300m
Nexans ref. 12000145 - Country ref. 422345
- Packaging: Reel (300m)
- Approximate net weight: 504 kg/km
- Cable Diameter: 20.3 mm
- Conductor Size (AWG): 10 AWG
- Conductor diameter (mm): 2.95
- Copper content: 176 kg/km
- Copper content: 118 lb/kft
- Finished Cable Diameter: 0.116 inches
- Ground Conductor cross-section (AWG): 12
- Nominal cable weight: 339 lb/kft
- Nominal diameter: 0.116 inches
- Number of cores: 3
3C12(7) TECK90 600V x300m
Nexans ref. 12010008 - Country ref. 422295
- Packaging: Reel (300m)
- Approximate net weight: 417 kg/km
- Cable Diameter: 18.9 mm
- Conductor Size (AWG): 12 AWG
- Conductor diameter (mm): 2.32
- Copper content: 111 kg/km
- Copper content: 74 lb/kft
- Finished Cable Diameter: 0.091 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 280 lb/kft
- Nominal diameter: 0.072 inches
- Number of cores: 3
3C14(7) TECK90 600V x300m
Nexans ref. 12000133 - Country ref. 422212
- Packaging: Reel (300m)
- Approximate net weight: 335 kg/km
- Cable Diameter: 18 mm
- Conductor Size (AWG): 14 AWG
- Conductor diameter (mm): 1.84
- Copper content: 77 kg/km
- Copper content: 52 lb/kft
- Finished Cable Diameter: 0.072 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 225 lb/kft
- Nominal diameter: 0.072 inches
- Number of cores: 3
40C14(7) TECK90 600V
Nexans ref. 12000106 - Country ref. 444547
- Packaging: Cut to length (m)
- Approximate net weight: 1822 kg/km
- Cable Diameter: 38.9 mm
- Conductor Size (AWG): 14 AWG
- Conductor diameter (mm): 1.84
- Copper content: 790 kg/km
- Copper content: 530 lb/kft
- Finished Cable Diameter: 0.072 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 1224 lb/kft
- Nominal diameter: 0.072 inches
- Number of cores: 40
4C10(7) TECK90 600V
Nexans ref. 12000074 - Country ref. 422352
- Packaging: Cut to length (m)
- Approximate net weight: 570 kg/km
- Cable Diameter: 22 mm
- Conductor Size (AWG): 10 AWG
- Conductor diameter (mm): 2.95
- Copper content: 225 kg/km
- Copper content: 151 lb/kft
- Finished Cable Diameter: 0.116 inches
- Ground Conductor cross-section (AWG): 12
- Nominal cable weight: 383 lb/kft
- Nominal diameter: 0.072 inches
- Number of cores: 4
4C12(7) TECK90 600V
Nexans ref. 12000142 - Country ref. 422303
- Packaging: Cut to length (m)
- Approximate net weight: 443 kg/km
- Cable Diameter: 20.8 mm
- Conductor Size (AWG): 12 AWG
- Conductor diameter (mm): 2.32
- Copper content: 141 kg/km
- Copper content: 95 lb/kft
- Finished Cable Diameter: 0.091 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 298 lb/kft
- Nominal diameter: 0.091 inches
- Number of cores: 4
4C14(7) TECK90 600V
Nexans ref. 12000134 - Country ref. 422220
- Packaging: Cut to length (m)
- Approximate net weight: 396 kg/km
- Cable Diameter: 19.3 mm
- Conductor Size (AWG): 14 AWG
- Conductor diameter (mm): 1.84
- Copper content: 96 kg/km
- Copper content: 64 lb/kft
- Finished Cable Diameter: 0.072 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 266 lb/kft
- Nominal diameter: 0.072 inches
- Number of cores: 4
50C14(7) TECK90 600V
Nexans ref. 12000105 - Country ref. 443796
- Packaging: Cut to length (m)
- Approximate net weight: 2184 kg/km
- Cable Diameter: 41.7 mm
- Conductor Size (AWG): 14 AWG
- Conductor diameter (mm): 1.84
- Copper content: 982 kg/km
- Copper content: 659 lb/kft
- Finished Cable Diameter: 0.072 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 1468 lb/kft
- Nominal diameter: 0.072 inches
- Number of cores: 50
5C14(7) TECK90 600V
Nexans ref. 12000135 - Country ref. 422238
- Packaging: Cut to length (m)
- Approximate net weight: 455 kg/km
- Cable Diameter: 20 mm
- Conductor Size (AWG): 14 AWG
- Conductor diameter (mm): 1.84
- Copper content: 115 kg/km
- Copper content: 77 lb/kft
- Finished Cable Diameter: 0.072 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 306 lb/kft
- Nominal diameter: 0.072 inches
- Number of cores: 5
6C10(7) TECK90 600V
Nexans ref. 12000206 - Country ref. 69815
- Packaging: Cut to length (m)
- Approximate net weight: 770 kg/km
- Cable Diameter: 25 mm
- Conductor Size (AWG): 10 AWG
- Conductor diameter (mm): 2.95
- Copper content: 323 kg/km
- Copper content: 217 lb/kft
- Finished Cable Diameter: 0.116 inches
- Ground Conductor cross-section (AWG): 12
- Nominal cable weight: 517 lb/kft
- Nominal diameter: 0.116 inches
- Number of cores: 6
6C12(7) TECK90 600V
Nexans ref. 12000143 - Country ref. 422311
- Packaging: Cut to length (m)
- Approximate net weight: 598 kg/km
- Cable Diameter: 23.2 mm
- Conductor Size (AWG): 12 AWG
- Conductor diameter (mm): 2.32
- Copper content: 203 kg/km
- Copper content: 136 lb/kft
- Finished Cable Diameter: 0.091 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 402 lb/kft
- Nominal diameter: 0.091 inches
- Number of cores: 6
6C14(7) TECK90 600V
Nexans ref. 12000136 - Country ref. 422246
- Packaging: Cut to length (m)
- Approximate net weight: 471 kg/km
- Cable Diameter: 21 mm
- Conductor Size (AWG): 14 AWG
- Conductor diameter (mm): 1.84
- Copper content: 134 kg/km
- Copper content: 90 lb/kft
- Finished Cable Diameter: 0.072 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 316 lb/kft
- Nominal diameter: 0.072 inches
- Number of cores: 6
7C14(7) TECK90 600V
Nexans ref. 12000137 - Country ref. 422253
- Packaging: Cut to length (m)
- Approximate net weight: 502 kg/km
- Cable Diameter: 21.4 mm
- Conductor Size (AWG): 14 AWG
- Conductor diameter (mm): 1.84
- Copper content: 154 kg/km
- Copper content: 103 lb/kft
- Finished Cable Diameter: 0.072 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 338 lb/kft
- Nominal diameter: 0.072 inches
- Number of cores: 7
8C12(7) TECK90 600V
Nexans ref. 12000112 - Country ref. 383695
- Packaging: Cut to length (m)
- Approximate net weight: 708 kg/km
- Cable Diameter: 24.7 mm
- Conductor Size (AWG): 12 AWG
- Conductor diameter (mm): 2.32
- Copper content: 264 kg/km
- Copper content: 177 lb/kft
- Finished Cable Diameter: 0.091 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 476 lb/kft
- Nominal diameter: 0.091 inches
- Number of cores: 8
8C14(7) TECK90 600V
Nexans ref. 12000138 - Country ref. 422261
- Packaging: Cut to length (m)
- Approximate net weight: 571 kg/km
- Cable Diameter: 23.1 mm
- Conductor Size (AWG): 14 AWG
- Conductor diameter (mm): 1.84
- Copper content: 173 kg/km
- Copper content: 116 lb/kft
- Finished Cable Diameter: 0.072 inches
- Ground Conductor cross-section (AWG): 14
- Nominal cable weight: 384 lb/kft
- Nominal diameter: 0.072 inches
- Number of cores: 8
Description
Description
Standards
-
NationalCSA C22.2 N° 131; CSA C22.2 N° 174
Even in the most demanding industrial and resource industry applications, Nexans TECK90 cables have proven to have a superior service and maintenance record.
TECK90 Cables utilize low acid gas, low flame spread PVC jacket compounds to ensure maximum safety to personnel and equipment in the event of fire.
Applications
TECK90 Cables, originally developed for use in Canadian mines, are flexible, resistant to mechanical abuse, corrosion resistant, compact and reliable. They are suitable for a wide range of applications, including ALL hazardous locations - Class I, Division 1 and 2; Class II, Division 1 and 2; and Class III.
Limited Smoke Zero Halogen - CSA rated ST1 per CSA 22.2 No. 2556 upon request. Meets the FT4 flame spread test.
Industries such as pulp and paper, chemical, petroleum and other primary and secondary manufacturing industries have used TECK90 Cables, particularly in areas where cables are subject to the risk of mechanical damage and chemical attack.
Commercial applications for TECK90 Cables include apartment buildings and commercial complexes.
TECK90 Cables can be relocated easily because they are rugged and flexible. They can be used in both dry and wet locations in open wiring, in ventilated, non-ventilated and ladder-type cable troughs, in ventilated flexible cableways, and for direct burial.
TECK90 Cables are also suitable for service entrance installations - above and below ground.
Highlights
Nexans TECK90 Cables are:
- Available from stock
- Versatile
- Flexible
- Resistant to Mechanical Abuse and Corrosion
- Compact and Reliable
- "HL" and "FT4" Rated per CSA
- 90°C to -40°C
- Low Acid Gas (AG14)
- Inner and outer jackets are sunlight resistant
- LEAD FREE
- RoHS compliant
- ST1 rating available upon request
Marking and Identification
The inner jackets of Nexans TECK90 cables are printed: SUN RES.
The outer jackets of Nexans TECK90 cables are printed: (mon/year) NEXANS TECK90 XLPE (-40°C) CSA LL19376 F HL FT4 AG14 SUN RES along with conductor size, number of conductors and sequential metre marking.
Optional ST1 marking
Conductor Identification:
2 Conductors: Black, White
3 Conductors: Red, Black, Blue
4 Conductors: Red, Black, Blue, White
5 or More Conductors: Black with Number Coding
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Selling & delivery Information
Caution Notice
In case of fire, well maintained early warning smoke detectors will give an alarm long before non-metallic coverings become combustible. However, in spite of the widespread and long-standing use of PVC in residential and commercial buildings, all purchasers of PVC insulated/ jacketed products should be aware of the following:
- Non-metallic coverings of electrical cables can burn and may transmit fire when ignited.
- Burning non-metallic coverings may emit acid gases which are toxic and may generate dense smoke.
- Emission of acid gases may corrode metal in the vicinity; e.g. sensitive instruments and reinforcing rods in cement.
Related products
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
